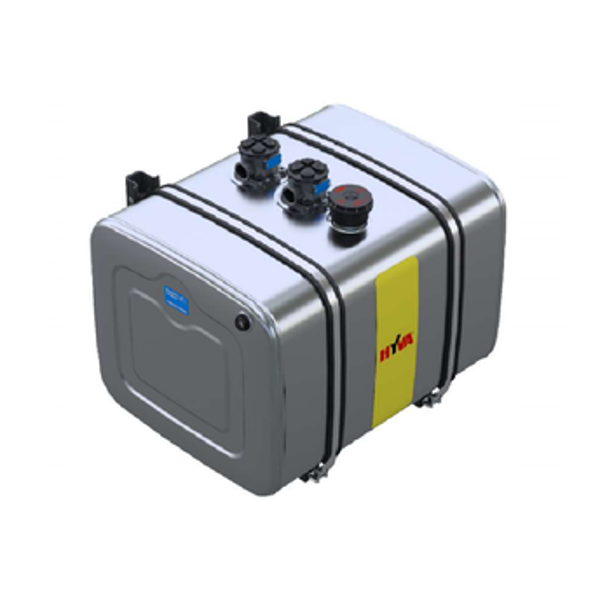

SM - 200/170L-AL oil tank with two return filters

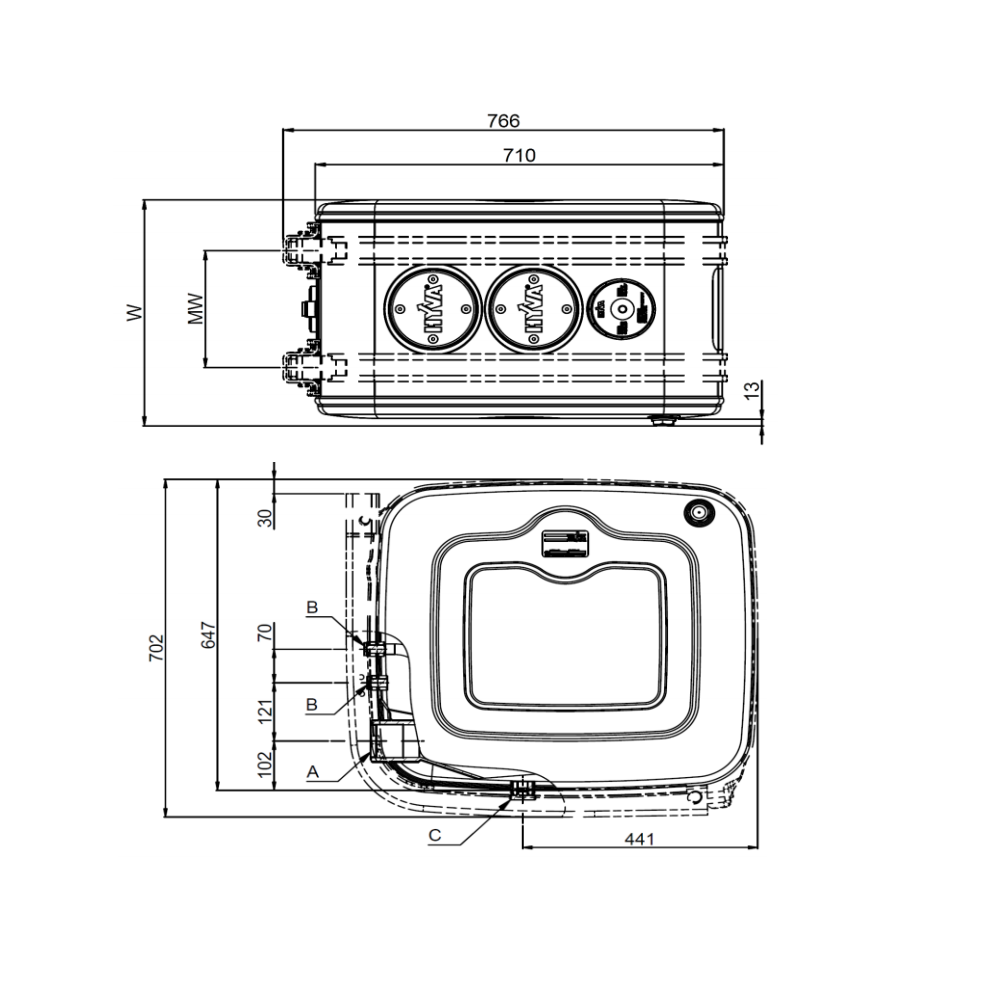

Technical data

• total capacity - 200 l
• working capacity - 170 l
• tank weight - 17 kg
• suction connections - 1.5'' BSPIT

The new series of HYVA ALPH HIGH VOLUME 2RF side tanks with two return filters, for use in dual-circuit hydraulic systems, e.g. tipper + crane, hook + crane and many others, where a separate return line and separate filtration are required.

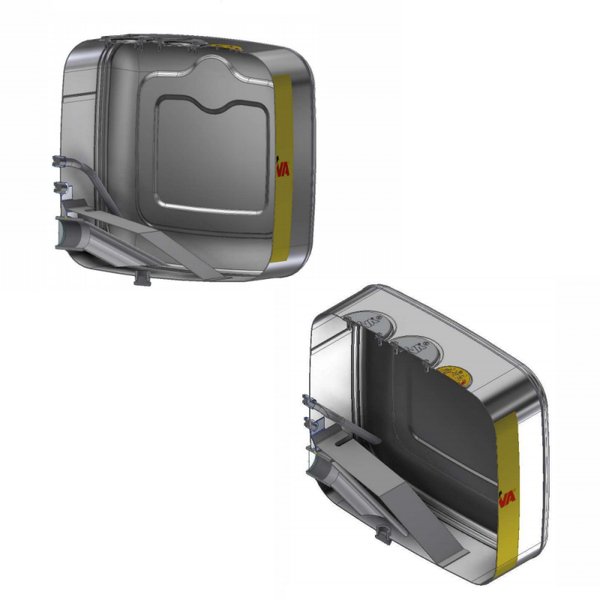

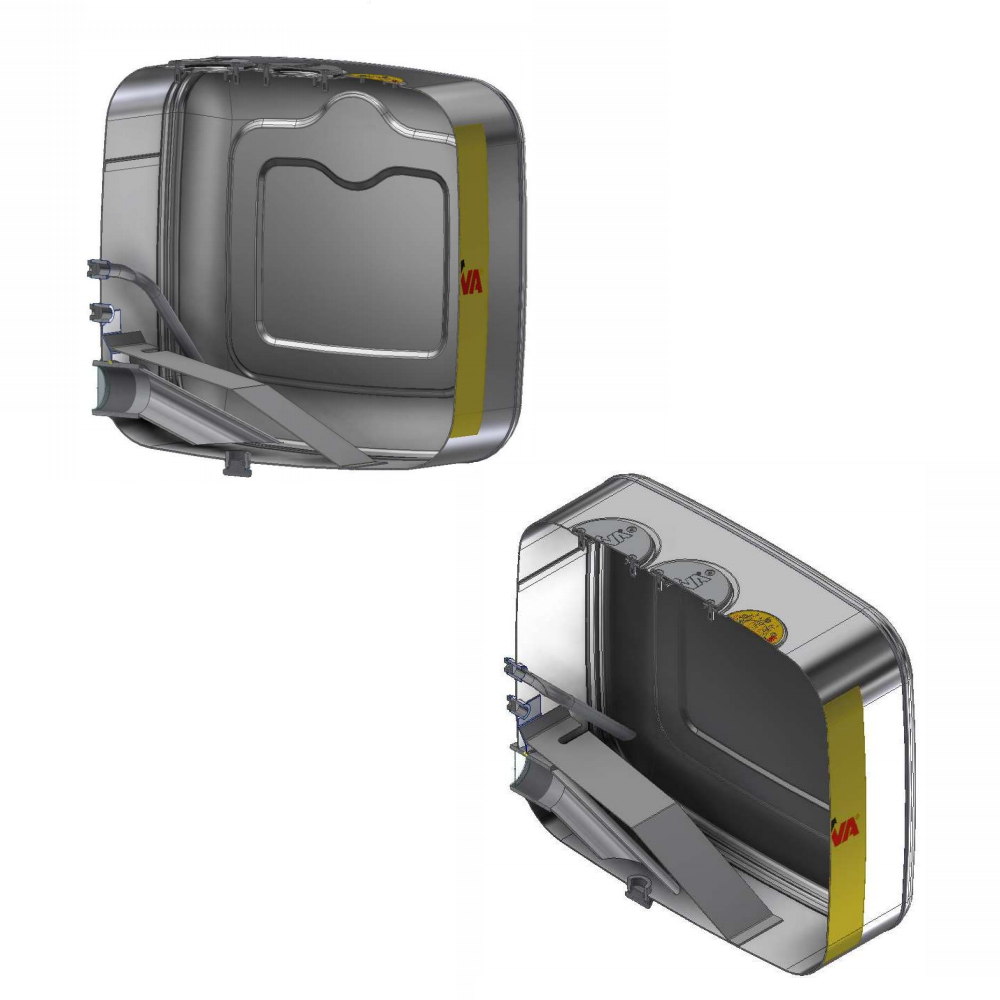

To reduce the risk of cavitation and prevent oil from being drawn directly from the return filters, the tank is equipped with internal deflectors and covers. Additional connections are also provided on the bottom of the tank.

The tanks are available in various sizes - specifications below in the "Technical Data" tab

Hyva offers a full range of oil tanks manufactured from the highest quality materials. They feature optimal corrosion protection, both internally and externally. Powder-coated tanks provide durable protection against external environmental influences. All tanks are cleaned and then pressure-tested for leaks.

To select a tank, the following factors should be analyzed:

• working capacity of the hydraulic system components,
• maximum pump volume,
• available space on the vehicle,
• mounting filters and valves.

The complete tank catalog can be found below, in the "Hyva Tank Catalog" tab.
