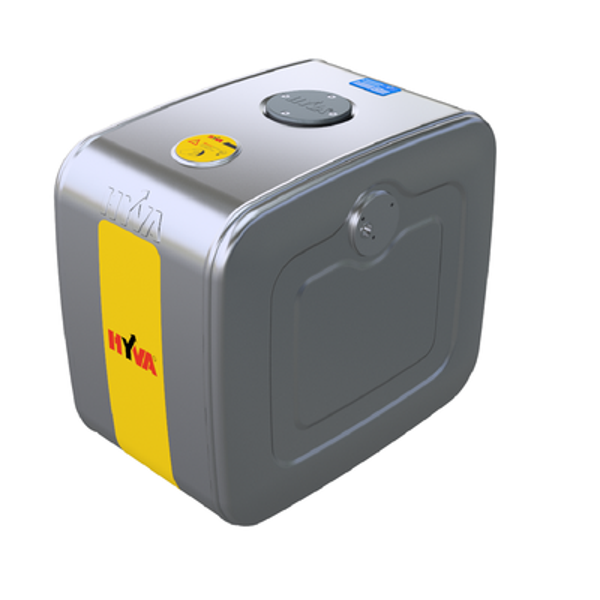

SM - 179L/150L-AL-MP2-MR oil tank with two valve mounting plates

The tank replaced earlier models:

14018229

Technical data

• DOUBLE TIPPING VALVE MOUNTING PLATE - on both sides of the tank
• total capacity - 179 l
• working capacity - 150 l
• tank weight - 16 kg
• suction connections - 1.5'' BSPIT

Hyva offers a full range of oil tanks manufactured from the highest quality materials. They feature optimal corrosion protection, both internally and externally. Powder-coated tanks provide durable protection against external environmental influences. All tanks are cleaned and then pressure-tested for leaks.

To select a tank, the following factors should be analyzed:

• working capacity of the hydraulic system components,
• maximum pump volume,
• available space on the vehicle,
• mounting filters and valves.

The complete tank catalog can be found below, in the "Hyva Tank Catalog" tab.
