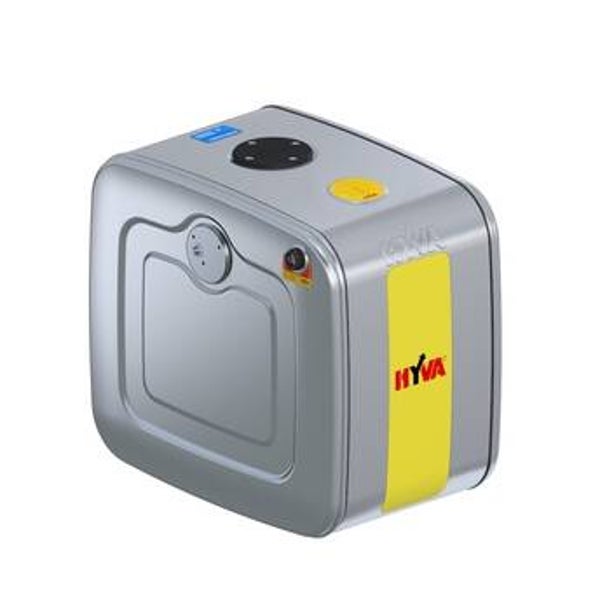

Oil tank SM - 236L/200L-AL-MP-MR

The tank replaced earlier models:

14018232

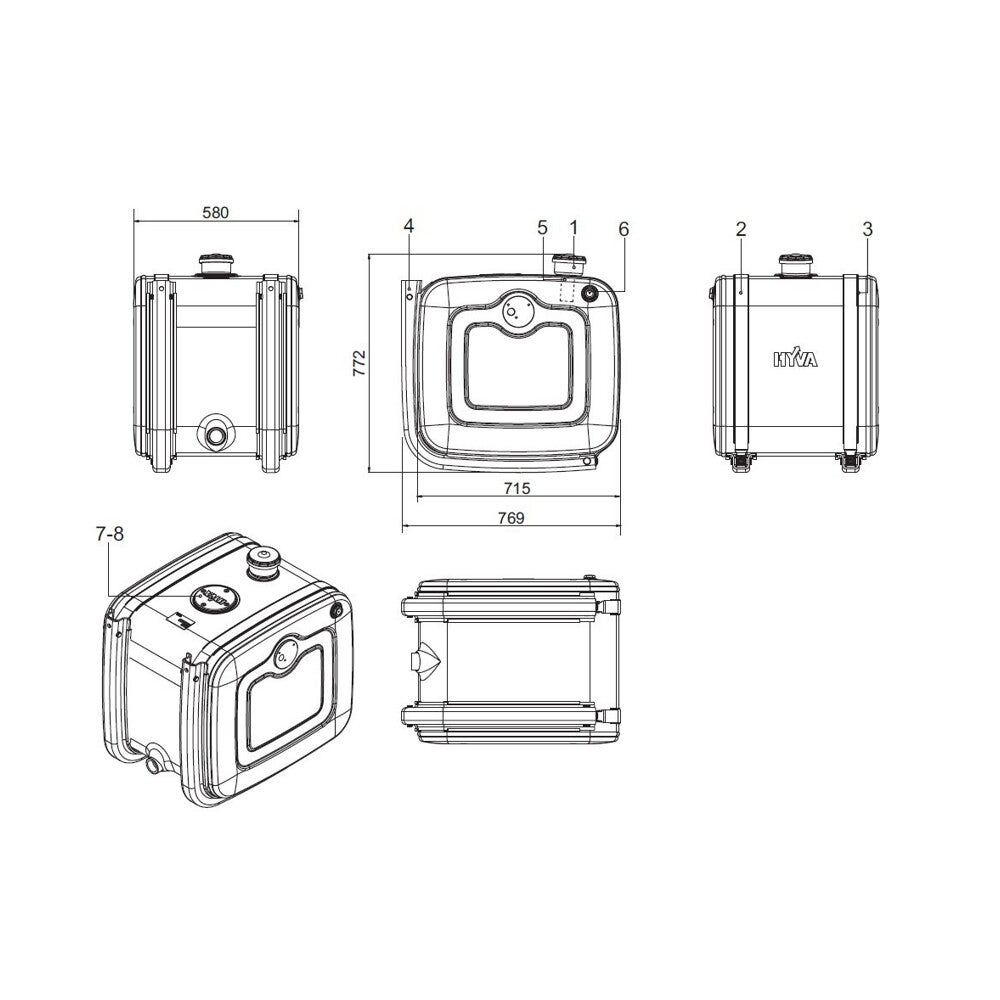

Technical data:

• total capacity - 236 l
• working capacity - 200 l
• tank weight - 18 kg
• suction connections - 1.5'' BSPIT

The kit does not include mounting elements for the tank, air filter, ball valve and suction hose adapter - these can be found on the left in the "Recommended products" box.

Hyva offers a full range of oil tanks manufactured from the highest quality materials. They feature optimal corrosion protection, both internally and externally. Powder-coated tanks provide durable protection against external environmental influences. All tanks are cleaned and then pressure-tested for leaks.

To select a tank, the following factors should be analyzed:

• working capacity of the hydraulic system components,
• maximum pump volume,
• available space on the vehicle,
• mounting filters and valves.

The complete tank catalog can be found below, in the "Hyva Tank Catalog" tab.
