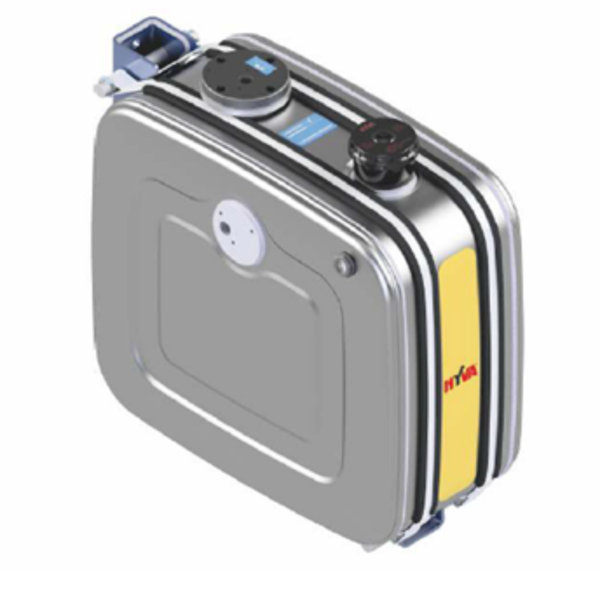

Oil tank SM - 132L/112L-AL-MP-MR

The tank replaced earlier models:

14018200

Technical data:

• total capacity - 132 l
• working capacity - 112 l
• tank weight - 15 kg
• suction connections - 1.5'' BSPIT

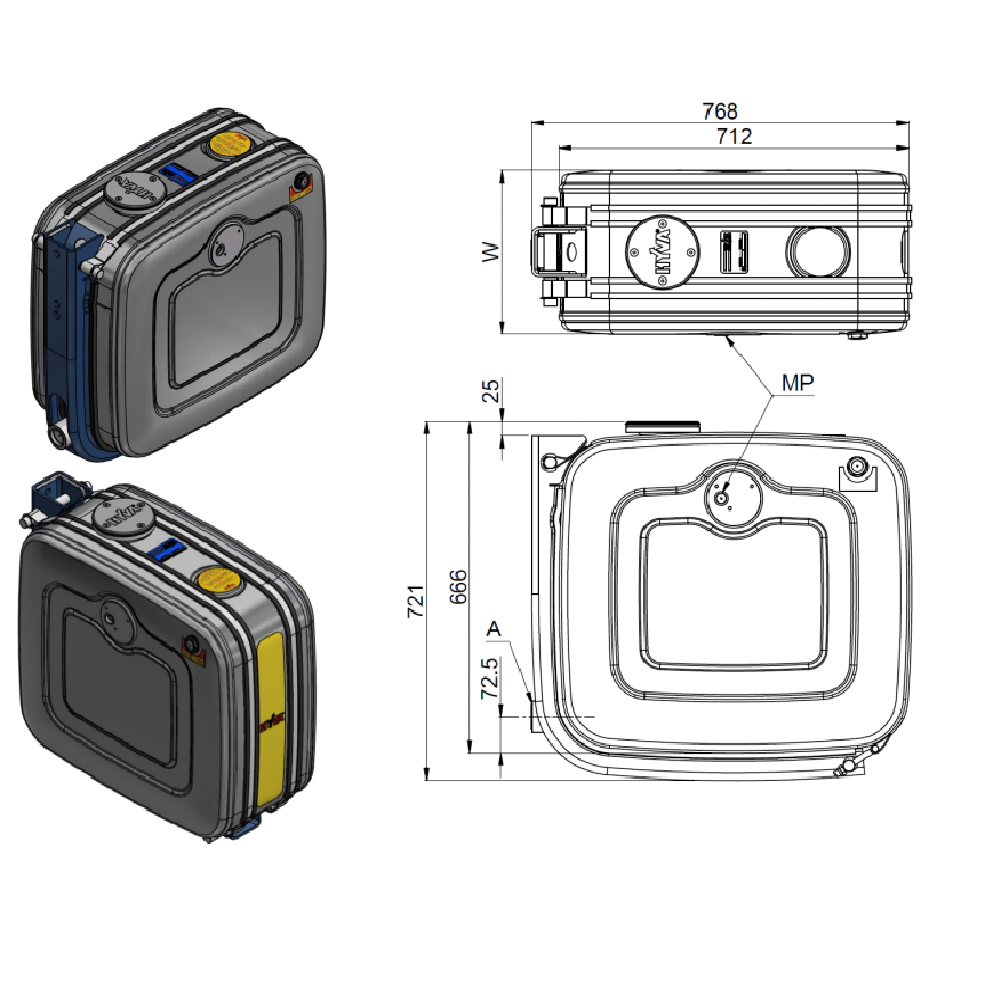

• dimensions - exact dimensions in the drawing on the left

The kit includes tank mounting hardware and an air filter. The return filter, ball valve, and suction hose adapter are not included. These can be found in the recommended products box on the right.

Hyva offers a full range of oil tanks manufactured from the highest quality materials. They feature optimal corrosion protection, both internally and externally. Powder-coated tanks provide durable protection against external environmental influences. All tanks are cleaned and then pressure-tested for leaks.

To select a tank, the following factors should be analyzed:

• working capacity of the hydraulic system components,
• maximum pump volume,
• available space on the vehicle,
• mounting filters and valves.

The complete tank catalog can be found below, in the "Hyva Tank Catalog" tab.
