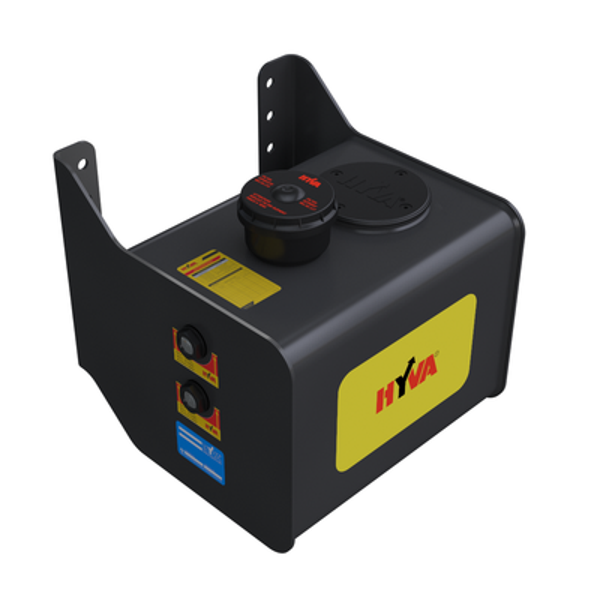

Oil tank SM - 34/23-14

Technical data:

• total capacity - 34 l
• working capacity - 23-14 l (two oil level marks)
• tank weight - 23 kg
• suction connections - 1.5'' BSPOT

Hyva offers a full range of oil tanks manufactured from the highest quality materials. They feature optimal corrosion protection, both internally and externally. Powder-coated tanks provide durable protection against external environmental influences. All tanks are cleaned and then pressure-tested for leaks.

To select a tank, the following factors should be analyzed:

• working capacity of the hydraulic system components,
• maximum pump volume,
• available space on the vehicle,
• mounting filters and valves.
